The Normal/Gaussian statistical distribution. More...

#include <NormalDistribution.h>

Inheritance diagram for CCCoreLib::NormalDistribution:

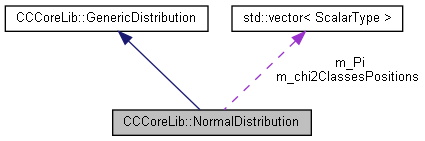

Collaboration diagram for CCCoreLib::NormalDistribution:

Public Member Functions
	NormalDistribution ()
	NormalDistribution constructor.

	NormalDistribution (ScalarType _mu, ScalarType _sigma2)
	NormalDistribution constructor. More...

bool	computeParameters (const ScalarContainer &values) override
	Computes the distribution parameters from a set of values. More...

double	computeP (ScalarType x) const override
	Computes the probability of x. More...

double	computePfromZero (ScalarType x) const override
	Computes the cumulative probability between 0 and x. More...

double	computeP (ScalarType x1, ScalarType x2) const override
	Computes the cumulative probability between x1 and x2. More...

double	computeChi2Dist (const GenericCloud Yk, unsigned numberOfClasses, int histo=nullptr) override
	Computes the Chi2 distance (related to the Chi2 Test) More...

const char *	getName () const override
	Returns distribution name. More...

bool	getParameters (ScalarType &_mu, ScalarType &_sigma2) const
	Returns the distribution parameters. More...

bool	setParameters (ScalarType _mu, ScalarType _sigma2)
	Sets the distribution parameters. More...

ScalarType	getMu () const
	Returns the distribution mean.

ScalarType	getSigma2 () const
	Returns the distribution variance.

bool	computeParameters (const GenericCloud *cloud)
	Computes the distribution parameters from a point cloud (with scalar values)

bool	computeRobustParameters (const ScalarContainer &values, double nSigma)
	Computes robust parameters for the distribution from an array of scalar values. More...

Public Member Functions inherited from CCCoreLib::GenericDistribution
	GenericDistribution ()
	Default constructor.

virtual	~GenericDistribution ()=default
	Default destructor.

virtual const char *	getName () const =0
	Returns distribution name. More...

virtual bool	isValid () const
	Indicates if the distribution parameters are valid. More...

virtual bool	computeParameters (const ScalarContainer &values)=0
	Computes the distribution parameters from a set of values. More...

virtual double	computeP (ScalarType x) const =0
	Computes the probability of x. More...

virtual double	computePfromZero (ScalarType x) const =0
	Computes the cumulative probability between 0 and x. More...

virtual double	computeP (ScalarType x1, ScalarType x2) const =0
	Computes the cumulative probability between x1 and x2. More...

virtual double	computeChi2Dist (const GenericCloud Yk, unsigned numberOfClasses, int histo=nullptr)=0
	Computes the Chi2 distance (related to the Chi2 Test) More...

Protected Member Functions
virtual bool	setChi2ClassesPositions (unsigned numberOfClasses)
	Compute each Chi2 class limits. More...

Protected Member Functions inherited from CCCoreLib::GenericDistribution
void	setValid (bool state)
	Sets distribution current validity.

Protected Attributes
ScalarType	m_mu
	Mean.

ScalarType	m_sigma2
	Variance.

double	m_qFactor
	Exponential quotient.

double	m_normFactor
	Normalization factor.

std::vector< ScalarType >	m_chi2ClassesPositions
	Chi2 classes limits. More...

std::vector< ScalarType >	m_Pi
	Structure used during the Chi2 distance computation.

Protected Attributes inherited from CCCoreLib::GenericDistribution
bool	m_isValid
	Whether the distribution is in a valid state or not.

Additional Inherited Members
Public Types inherited from CCCoreLib::GenericDistribution
using	ScalarContainer = std::vector< ScalarType >
	Scalar values container.

Detailed Description

The Normal/Gaussian statistical distribution.

Implements the GenericDistribution interface.

Constructor & Destructor Documentation

◆ NormalDistribution()

NormalDistribution::NormalDistribution	(	ScalarType	_mu,
		ScalarType	_sigma2
	)

NormalDistribution constructor.

Distrubtion parameters can be directly set during object construction.

Parameters

_mu	the normal distribution mean
_sigma2	the normal distribution variance

Member Function Documentation

◆ computeChi2Dist()

double NormalDistribution::computeChi2Dist	(	const GenericCloud *	Yk,
		unsigned	numberOfClasses,
		int *	histo = `nullptr`
	)

overridevirtual

Computes the Chi2 distance (related to the Chi2 Test)

Computes the Chi2 distance from a group of point, accordingly to a certain number of classes (see Chi2 test theory for more information). The result of projecting each point (or more precisely each scalar value associated to each point) in the different classes can be stored in an array (of the same size as the number of classes). To do so, such an array (already allocated in memory) should be passed as an argument. Warning: be sure to activate an OUTPUT scalar field on the input cloud

Parameters

Yk	a group of points
numberOfClasses	the number of classes for the Chi2 Test
histo	an array to store the values projection result (optional)

Returns: the Chi2 distance (or -1.0 if an error occurred)

Implements CCCoreLib::GenericDistribution.

◆ computeP() [1/2]

double NormalDistribution::computeP ( ScalarType x ) const

overridevirtual

Computes the probability of x.

Parameters

x	the variable

Returns: the probabilty

Implements CCCoreLib::GenericDistribution.

◆ computeP() [2/2]

double NormalDistribution::computeP	(	ScalarType	x1,
		ScalarType	x2
	)		const

overridevirtual

Computes the cumulative probability between x1 and x2.

x1 should be lower than x2

Parameters

x1	the lower boundary
x2	the upper boundary

Returns: the cumulative probabilty

Implements CCCoreLib::GenericDistribution.

◆ computeParameters()

bool NormalDistribution::computeParameters ( const ScalarContainer & values )

overridevirtual

Computes the distribution parameters from a set of values.

Parameters

values a set of scalar values

Returns: true (if the computation succeeded) or false (if not)

Implements CCCoreLib::GenericDistribution.

◆ computePfromZero()

double NormalDistribution::computePfromZero ( ScalarType x ) const

overridevirtual

Computes the cumulative probability between 0 and x.

Parameters

x	the upper boundary

Returns: the cumulative probabilty

Implements CCCoreLib::GenericDistribution.

◆ computeRobustParameters()

bool NormalDistribution::computeRobustParameters	(	const ScalarContainer &	values,
		double	nSigma
	)

Computes robust parameters for the distribution from an array of scalar values.

Specific method to compute the parameters directly from an array (vector) of scalar values, without associated points. After a first pass, only the values close enough to the mean (in terms of nSigma times the initial variance) are kept to make a second and more robust evaluation of the parameters.

Parameters

values	the scalar values
nSigma	the values filtering interval size ([mu -nSigma * stddev : mu + nSigma * stddev])

Returns: the validity of the computed parameters

◆ getName()

const char * CCCoreLib::NormalDistribution::getName ( ) const

inlineoverridevirtual

Returns distribution name.

Implements CCCoreLib::GenericDistribution.

◆ getParameters()

bool NormalDistribution::getParameters	(	ScalarType &	_mu,
		ScalarType &	_sigma2
	)		const

Returns the distribution parameters.

Parameters

_mu	a field to transmit the distribution mean
_sigma2	a field to transmit the distribution variance return the parameters validity

◆ setChi2ClassesPositions()

bool NormalDistribution::setChi2ClassesPositions ( unsigned numberOfClasses )

protectedvirtual

Compute each Chi2 class limits.

This method is used (internally) to accelerate the Chi2 distance computation.

Parameters

numberOfClasses the number of classes that will be used for Chi2 distance computation

Returns: success

◆ setParameters()

bool NormalDistribution::setParameters	(	ScalarType	_mu,
		ScalarType	_sigma2
	)

Sets the distribution parameters.

Parameters

_mu	the distribution mean
_sigma2	the distribution variance return the parameters validity

Member Data Documentation

◆ m_chi2ClassesPositions

std::vector<ScalarType> CCCoreLib::NormalDistribution::m_chi2ClassesPositions

protected

Chi2 classes limits.

Used internally. Stores both limits for each class in a vector (min_class_1, max_class_1, min_class_2, max_class_2, etc.).

The documentation for this class was generated from the following files:

NormalDistribution.h
NormalDistribution.cpp
