#include <ccIsolines.h>

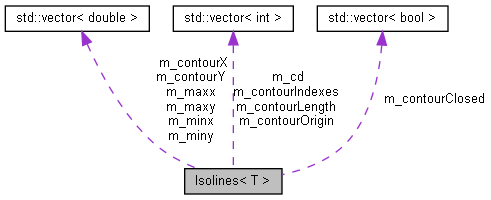

Collaboration diagram for Isolines< T >:

[legend]

Public Member Functions
	Isolines (int w, int h)
	Default constructor.

void	setThreshold (T t)
	Sets isoline value to trace.

int	find (const T *in)
	Find isolines.

int	getNumContours () const
	Returns the number of found contours.

int	getContourLength (int contour) const
	Returns the length of a given contour.

bool	isContourClosed (int contour) const
	Returns whether a given contour is closed or not.

void	getContourPoint (int contour, size_t index, double &x, double &y) const
	Returns the given point (x,y) of a given contour.

double	measureArea (int contour) const
	Measures the area delineated by a given contour.

double	measurePerimeter (int contour) const
	Measures the perimeter of a given contour.

void	createOnePixelBorder (T *in, T borderval) const
	Creates a single pixel, 0-valued border around the grid.

double	getContourX (int contour, int v) const

double	getContourY (int contour, int v) const

double	measureCurvature (int contour, int i) const

void	findAreas (int window, std::vector< double > &tips)

void	findRoundedCorners (int window, std::vector< double > &tips)

int	getMaxContour () const

bool	computeBoundingBoxes ()

double	getBBMinX (int contour) const

double	getBBMaxX (int contour) const

double	getBBMinY (int contour) const

double	getBBMaxY (int contour) const

bool	contains (int k, double x, double y) const

bool	containsContour (int k1, int k2)

bool	containsBoundingBox (int k, double minx, double miny, double maxx, double maxy) const

bool	contains (const std::vector< double > &polyx, const std::vector< double > &polyy, double x, double y) const

bool	bbIntersect (int k1, int k2) const

bool	bbContainsBB (int k1, int k2) const

double	bbArea (int k) const

double	getBBCenterX (int k) const

double	getBBCenterY (int k) const

Protected Types
enum	ConfigurationCodes { CASE0 = 0 , CASE1 = 1 , CASE2 = 2 , CASE3 = 3 , CASE4 = 4 , CASE5 = 5 , CASE6 = 6 , CASE7 = 7 , CASE8 = 8 , CASE9 = 9 , CASE10 = 10 , CASE11 = 11 , CASE12 = 12 , CASE13 = 13 , CASE14 = 14 , CASE15 = 15 , VISITED = 16 }
	2x2 cell configuration codes

enum	Edges { NONE = -1 , TOP = 0 , RIGHT = 1 , BOTTOM = 2 , LEFT = 3 }
	Entry/exit edges.

Protected Member Functions
void	preCodeImage (const T *in)
	Computes a code for each group of 4x4 cells. More...

void	endContour (bool closed, bool alternatePath)

int	findIsolines (const T *in)
	Searches image for contours from topleft to bottomright corners.

double	LERP (T A, T B) const
	LERP between two values.

int	getLastIndex () const

void	setContourX (int contour, int v, double x)

void	setContourY (int contour, int v, double y)

int	getValidIndex (int contour, int v) const

double	measureArea (int contour, int first, int last) const

double	measureMeanX (int contour) const

double	measureMeanY (int contour) const

double	measurePerimeter (int contour, int first, int last) const

double	measureNormalX (int contour, int i) const

double	measureNormalY (int contour, int i) const

double	measureNormalY (int contour, int first, int last) const

double	measureNormalX (int contour, int first, int last) const

double	measureAngleChange (int contour, int first, int last) const

int	ixy (int x, int y) const

double	measureDistance (int contour, int first, int second) const

double	measureLength (int contour, int i) const

double	measureAngle (int contour, int i) const

Static Protected Member Functions
static int	wrap (int i, int lo, int hi)

Protected Attributes
std::vector< double >	m_minx

std::vector< double >	m_miny

std::vector< double >	m_maxx

std::vector< double >	m_maxy

std::vector< int >	m_cd

std::vector< double >	m_contourX

std::vector< double >	m_contourY

std::vector< int >	m_contourLength

std::vector< int >	m_contourOrigin

std::vector< int >	m_contourIndexes

std::vector< bool >	m_contourClosed

int	m_w

int	m_h

int	m_numContours

T	m_threshold

Detailed Description

template<typename T>
class Isolines< T >

Transcription of FindIsolines.java for C++

Fast implementation of marching squares

AUTHOR: Murphy Stein, Greg Borenstein New York University CREATED: Jan-Sept 2012 MODIFIED: Dec 2014 (DGM)

LICENSE: BSD

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by New York Univserity. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED `‘AS IS’' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. This is a fast implementation of the marching squares algorithm for finding isolines (lines of equal color) in an image.

Member Function Documentation

◆ preCodeImage()

template<typename T >

void Isolines< T >::preCodeImage ( const T * in )

inlineprotected

Computes a code for each group of 4x4 cells.

The code depends only on whether each of four corners is above or below threshold.

The documentation for this class was generated from the following file:

ccIsolines.h
