CloudCompare Release Notes (2015/10/08)

Dear CloudCompare enthusiasts,

A new version has been released. You'll find it here:

CloudCompare 2.8
installer version

CloudCompare 2.8
7z archive version

ccViewer 1.36
7z archive version

Windows 64 bits

Windows 64 bits Stereo (support for NVidia 3D Vision and Oculus Rift)

Mac OS 64 bits

Thanks to Andy Maloney, MacOS apps are available here

Linux 64 bits

Thanks to Romain Janvier, packages for Ubuntu/Debian will be availablevery soon (stay tuned ;)

Sources

git repository: https://github.com/cloudcompar/cloudcompare
(for compilation instructions, refer to the BUILD.md file)

The wiki documentation is also up-to-date!

Your support is greatly appreciated. Many thanks to all our supporters who made donations on pledgie!

Click here to lend your support to: CloudCompare and make a donation at www.pledgie.com !

The 2.8 Hogfather version is finally ready!
We've nicknamed it Hogfather because all cool projects have nicknames and we miss Terry Pratchett ;-)

Once again, many new things in this release:

several new plugins (qVirtualBroom to clean road scans, qCSF for bare-earth extraction, qHoughNormals for normal computation, and the M3C2 sources are now public!)
better support for Retina displays, and many other improvements of the Mac OS version (a big thanks to Andy Maloney!)
new methods (advanced plane creation, structured cloud meshing, etc.)
new formats supported (Riegl RDBX, Photoscan PSZ, etc.)
and many other improvements and bug fixes

(Just make sure your graphic card drivers are not too old: since version 2.7, old Intel or ATI graphic cards are not supported anymore)

Your support is really appreciated.

I'd like to take this opportunity to remind our users that contrarily to what I often hear, CloudCompare is not "free". It's true that downloading and using CloudCompare can be done freely and free of charge... but developping and maintaining it: certainly not! Open source projects can't live without active support from the community. And considering that CC has thousands of users, only a few bucks per user would make a huge difference (and I really mean only a few bucks: less than a packet of cigarettes, a pinte, a burger, a gallon of gasoline, or any other thing that is bad for your health and that you could easily skip if you - or your employer - have a really tight budget ;).

And last but not least, many thanks to the contributors and to the companies and laboratories who have financed some of the new features.

Here are the new features:

New plugin: qBroom (Virtual Broom) [Windows, macOS]

meant to clean road scans efficiently
more generally: a smart and interactive selection of points on a surface (globally flat, e.g. like a road ;)

selection of the points inside the 'broom', above, below or both

option to invert the selection

automation mode
Thanks to Wesley Grimes of Collision Engineering Associates, Inc. for this great contribution!

New plugin: qCSF (Cloth Simulation Filtering) [Windows, macOS]

automatic ground / non-ground classification of aerial LIDAR point clouds

based on the article: "An Easy-to-Use Airborne LIDAR Data Filtering Method Based on Cloth Simulation", Qi Jianbo, Wan Peng, 2015
Thanks to the authors for this great contribution as well!

New plugin: qHoughNormals (Normal Estimation in Unstructured Point Clouds) [Windows, macOS, Linux]

based on "Deep Learning for Robust Normal Estimation in Unstructured Point Clouds" by Alexandre Boulch and Renaud Marlet, Symposium of Geometry Processing 2016, Computer Graphics Forum

qM3C2 sources are now public! The plugin is now available on all platforms

Early support for FWF (Full WaveForm) airborne LIDAR data [Windows only]

use the 'LAS 1.3 or 1.4 (*.las *.laz)' file filter to open LAS files with full waveform data

new 'Edit > Waveform > 2D Waveform viewer' to visualize waveforms associated to each point (as 2D curves)

option to export the waveform to a CSV file

New 'Geological' plane creation / edition methods:

Edit > Plane > Create: lets the user create a plane with specific dip / dip direction, center (can be picked on a cloud or a mesh), width and height

Edit > Plane > Edit: edit the above parameters on an existing plane entity
Thanks to SAGE Ingéniérie for this great contribution!

New tool: Edit > Mesh > Create surface between two polylines

creates a surface patch between two polylines
Thanks to SAGE Ingéniérie for this great contribution!

New tool: Edit > Mesh > Mesh scan grids

creates a surface from a cloud with one or several scan grids
this tool produces one mesh per grid

New tool: Edit > Color > Enhance with intensities

enhances the RGB colors thanks to the intensity scalar field (RGB-IHS method)

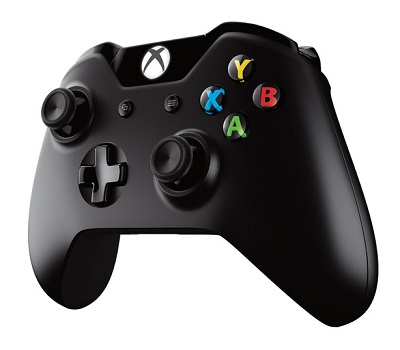

Gamepad support (XBox, etc.) [Windows only]

Enable it with the 'File > Gamepad > Enable' menu entry
A: toggle viewer-based perspective mode
B: toggle object-based perspective mode
left stick: move body (viewer-based mode) or move object [left/right and forward/backward]
right stick: rotate head (viewer-based mode) or rotate object
cross: move body (viewer-based mode) or move object [left/right and up/down]
L1/R1: change point size
L2/R2: roll left/right
start: zoom and center on the visible entities
Warning, this feature is still a Qt 5.7 'preview', therefore it may not work on all computers and with all gamepads...

New color scales:

two colorscales for dip and dip direction display (thanks to T. Dewez)
matplotlib's veridis colormap (perceptually-uniform)

Adds an "Open Recent" item to the File menu to quickly access the last 10 files that you've worked with.

New 'display' option to draw round points instead of square ones (when the point size > 1).

Warning, the display may be slower then.

New formats supported:

New polyline format: 2D height profile (curvilinear abscissa + Z coordinate)
Photoscan PSZ

[Windows] Riegl RDBX

And here below is the (huge) list of improvements

Animation plugin

new 'Export frames' button to generate individual frames instead of an animation

Poisson Reconstruction plugin:

based on the latest version of PoissonRecon by Misha (V9.1)
the user can now choose the boundary conditions (free / Dirichlet / Neumann)

Cross-section tool

the tool now supports multiple clouds and/or meshes

DB Tree (select children by type and/or by name)

regular expressions can now be used to select entities in the DB tree

Facets plugin

meta-data (normals, dip/direction, etc.) is now updated when the facet is rotated / transformed
the 3D representation of the normal vector now depends on the facet size and not on its min. bounding-box size

New shortcuts 'a la Meshlab':

CC now supports the 'CTRL + mouse wheel' shortcut to change the point size
CC now supports the 'ALT + mouse wheel' shortcut to change the zNear value (perspective mode)
CC now supports the 'SHIFT + mouse wheel' shortcut to change the field of view (perspective mode)

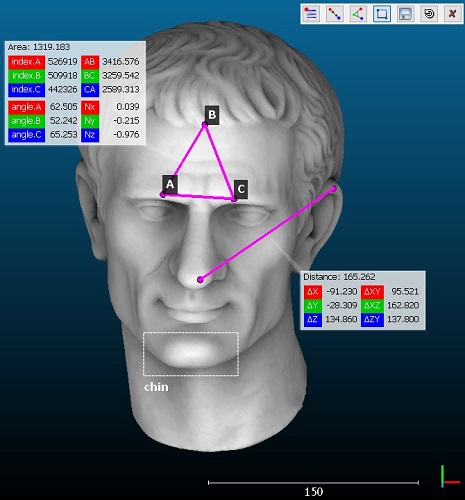

2D labels:

most of the 2D labels parts (segment, point legend, etc.) are now displayed in 2D (this way they appear above the entities to be visible all the time)

SHP files:

when loading 2D points, the Z coordinate can now be exported from an associated DBF field

File loading:

when a multiple files are loaded, cancelling the loading process of one file will stop the whole loading procedure

LAS/LAZ files:

load dialog reorganized
info about the file are now displayed in a 'Info' tab (point count, bounding box)
new 'Tiling' option to tile a (big) LAS/LAZ file into smaller ones (the cloud is not actually loaded in memory)

Global Shift & Scale:

the PoissonRecon plugin now transfers the Global Shift & Scale information from the cloud to the resulting mesh

the 'Tools > Projection > Contour plot (polylines) to mesh' tool transfers the Global Shift & Scale information from the (first) polyline to the resulting mesh

2.5D Volume Calculation tool:

new option to export the height difference grid as a cloud (warning: the exported points height will actually be equal to the height difference)
default color scale is now symmetrical if the height differences are not only positive or only negative

Rasterize tool:

the 'interpolate' option for empty cells now also interpolates the scalar fields and RGB color layers

the rasterize tool now uses the 'PixelIsArea' convention (i.e. the grid min corner coordinates correspond to the first grid cell center). This allows one to apply the Rasterize tool on a regular grid without any interference / sampling issues.
as a result, the volume calculation tool has been updated. Notably, results from the rasterize tool can be used in the 2.5D Volume calculation tool without any sampling artefact
exported rasters (geotiff) are using the same convention. They are also now properly oriented (they could be loaded flipped in some GIS tools).
ASCII matrix is now exported from top (highest Y coordinates) to bottom (lowest)
mixing RGB bands and other layers (heights, scalar fields, etc.) in a geotiff is in fact a bad idea. It results in 64 bits color bands that are not properly handled by most of the other GIS tools. CC will now warn the user about this.
exported clouds and meshes are now properly exported in the same coordinate system as the input cloud (it was not the case for clouds projected along X or Y)
a coarse estimation of the grid volume (relative to Z = 0) is now available in the 'volume' tab

Raster file import:

New option to import the raster as a textured quad (mesh). Only available if the raster has at least R, G and B bands.
CC is now able to properly load raster files with multiple undefined bands

All the selected lines of the Console can now be copied at once (e.g. with CTRL+C on Windows)

Connected Components Extraction:

safeguard added if too many components are to be created (CC will ask the user to confirm the creation of more than 500 components)

CC should now warn the user when they try to save a file with a filename containing special characters when the third party library in charge of the export doesn't support them (see the warning Console message)

Display options

menu entry changed from 'Display parameters' to 'Display options' for the sake of consistency
new option: 'double sided' (light) to control whether triangles should be lit from the back or not

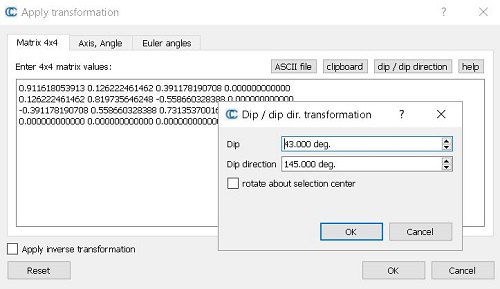

Apply Transformation tool

new 'Reset' button
new 'From dip / dip direction' to initialize the transformation as a rotation matrix passing from (0, 0) to the specified (dip, dip dir.) orientation

Normals computation

glitch fix: when computing normals with the 'LS plane' model, only 3 neighbors are now requested (instead of 12 before)
CC now handles properly the (0, 0, 0) normal resulting from an insufficient number of neighbors
Dip / Dip direction computation takes the (0, 0, 0) normal into account and outputs NaN values for these normals

this way it is possible to filter out the points with bad normals with 'Edit > SF > Filter by value' and using the full (valid) range

Other

Transformation history is now saved in BIN files
The normal of a plane entity can now be visualized as a 3D arrow (just as the Facet entities)

Dip and dip direction are now displayed in the properties of Facets and Planes
New option to update an existing viewport object (with the current camera parameters)
[macOS] Now looks for the global_shift.txt file beside the .app instead of inside the application bundle
[macOS] Hides the 3D mouse and Gamepad menus since they are not yet supported on macOS
[macOS] Increases the default font sizes for the 3D viewer (these may be set in the Display Options)
I/O plugins (Faro, DP, Riegl, etc) are now loaded even when using CC in command line mode

And last but not least, here are the bug fixes:

the custom light was broken
the 2D labels marker size (in 3D) was too dependent on the perspective camera position
the fields named 'intensity', 'grey', 'gray' or 'col***i' in PLY files are now automatically loaded as scalar fields (instead of 'intensity', i.e. grey level RGB)
when using a DBF field as height for polylines (in SHP files), the height value could be read from the wrong field
qSRA (Surface or Revolution Analysis): the profile origin was not always properly taken into account. The latitude angles were not always computed relative to the profile origin and changing the origin via the distance map dialog could be misleading.
when clicking on the 'Apply all' button of the LAS/LAZ loading dialog, the global shift set for the first file could be ignored by the subsequent ones
the 3-points label vertex names (A,B,C) were not displayed by default
Rasterize tool:

the 'Hillshade' computation tool was considering the grid upside-down (hence the sun azimuth angle was inverted)
contour lines generated with a projection direction other than Z were not displayed in the right orientation compared to the grid raster (inside the Rasterize tool only)

Command line tool:

the CROP2D option applied with an orientation other than Z was not performing the cut at the right position

the CURV option was no longer accessible

Connected Components Extraction: the tool couldn't be used properly with an octree level > 10
CC failed to save E57 files with multiple clouds with normals
ccViewer was transforming input arguments to upper case, hence preventing files to be opened this way on Linux
Documentation: contrarily to what was written in the wiki, the Level tool does not use the first picked point as origin for the new coordinate system! It only rotates the cloud about this point.
The new plane fitting algorithm (Least Squares fit) was giving strange results in some particular cases. Rolling back to the previous algorithm.
The sandbox tool 'Distance map to best fit 3D quadric' was broken
When computing normals with the Least Squares best fitting plane, CC required at least 12 points in the neighborhood, when only 3 are theoretically sufficient.
The SOR filter was broken (it was potentially using much more points than the number specified by the user, and it was changing over the cloud!)
Fixed a problem when creating a new 3D view with the view not updating until the window was resized or refreshed.
[macOS] Fix plugins on case-sensitive file systems
[macOS] Fix problem with the main window jumping around and resizing when dragging toolbars
[macOS] Fixes the layout of the 2.5D Volume Calculation dialog
Global shift & scale information could be lost when cloning entities or merging them with other non-shifted entities

You can make donations to the project via'Pledgie':

Enjoy,

CloudCompare Admin

PS: if you can't read properly this message, you can read it here: http://www.cloudcompare.org/release/notes/20161218/index.html
