Mesh\Surface between two polylines
Jump to navigation
Jump to search
Menu
This tool is accessible via the 'Edit > Mesh > Surface between two polylines' or equivalently via the 'Tools > Registration > Create surface between two polylines' menu entries.
Description

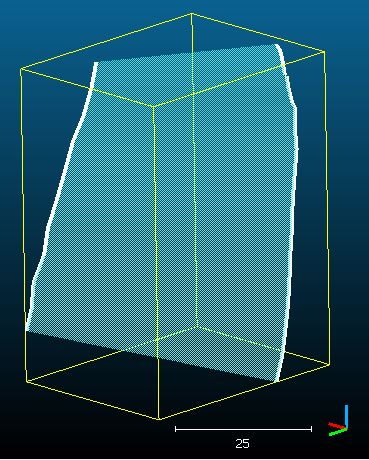

This tool will create a triangular mesh between two (opened) polylines.
Procedure
Select two polylines then start this tool.
CC will ask whether to create the mesh between the two polylines by computing the two polylines best fitting plane, or by considering the current display orientation. Once the choice is made, CC will create the surface.
