Compressed normal vectors handler. More...

#include <ccNormalVectors.h>

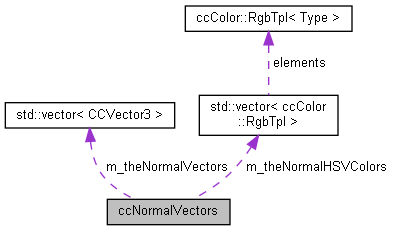

Collaboration diagram for ccNormalVectors:

[legend]

Public Types
enum	Orientation { PLUS_X = 0 , MINUS_X = 1 , PLUS_Y = 2 , MINUS_Y = 3 , PLUS_Z = 4 , MINUS_Z = 5 , PLUS_BARYCENTER = 6 , MINUS_BARYCENTER = 7 , PLUS_ORIGIN = 8 , MINUS_ORIGIN = 9 , PREVIOUS = 10 , PLUS_SENSOR_ORIGIN = 11 , MINUS_SENSOR_ORIGIN = 12 , UNDEFINED = 255 }
	'Default' orientations More...

Public Member Functions
const CCVector3 &	getNormal (unsigned normIndex) const
	Returns the precomputed normal corresponding to a given compressed index.

virtual	~ccNormalVectors ()=default
	Default destructor.

bool	enableNormalHSVColorsArray ()
	Allocates normal HSV colors array. More...

const ccColor::Rgb &	getNormalHSVColor (unsigned index) const
	Returns the HSV color equivalent to a given compressed normal index.

const std::vector< ccColor::Rgb > &	getNormalHSVColorArray () const
	Returns the HSV color array.

Static Public Member Functions
static ccNormalVectors *	GetUniqueInstance ()
	Returns unique instance.

static void	ReleaseUniqueInstance ()
	Releases unique instance. More...

static unsigned	GetNumberOfVectors ()
	Returns the number of compressed normal vectors.

static const CCVector3 &	GetNormal (unsigned normIndex)
	Static access to ccNormalVectors::getNormal.

static CompressedNormType	GetNormIndex (const PointCoordinateType N[])
	Returns the compressed index corresponding to a normal vector.

static CompressedNormType	GetNormIndex (const CCVector3 &N)
	Returns the compressed index corresponding to a normal vector (shortcut)

static bool	ComputeCloudNormals (ccGenericPointCloud cloud, NormsIndexesTableType &theNormsCodes, CCCoreLib::LOCAL_MODEL_TYPES localModel, PointCoordinateType localRadius, Orientation preferredOrientation=UNDEFINED, CCCoreLib::GenericProgressCallback progressCb=nullptr, CCCoreLib::DgmOctree *inputOctree=nullptr)
	Computes normal at each point of a given cloud. More...

static bool	UpdateNormalOrientations (ccGenericPointCloud *theCloud, NormsIndexesTableType &theNormsCodes, Orientation preferredOrientation)
	Updates normals orientation based on a preferred orientation. More...

static void	ConvertNormalToStrikeAndDip (const CCVector3 &N, PointCoordinateType &strike_deg, PointCoordinateType &dip_deg)
	Converts a normal vector to geological 'strike & dip' parameters (N[dip]°E - [strike]°) More...

static void	ConvertNormalToDipAndDipDir (const CCVector3 &N, PointCoordinateType &dip_deg, PointCoordinateType &dipDir_deg)
	Converts a normal vector to geological 'dip direction & dip' parameters. More...

static CCVector3	ConvertDipAndDipDirToNormal (PointCoordinateType dip_deg, PointCoordinateType dipDir_deg, bool upward=true)
	Converts a couple of geological 'dip direction & dip' parameters to a unit normal vector. More...

static QString	ConvertStrikeAndDipToString (double &strike_deg, double &dip_deg)
	Converts geological 'strike & dip' parameters (N[dip]°E - [strike]°) to a string. More...

static QString	ConvertDipAndDipDirToString (PointCoordinateType dip_deg, PointCoordinateType dipDir_deg)
	Converts geological 'dip direction & dip' parameters to a string. More...

static void	ConvertNormalToHSV (const CCVector3 &N, float &H, float &S, float &V)
	Converts a normal vector to HSV color space. More...

static ccColor::Rgb	ConvertNormalToRGB (const CCVector3 &N)
	Converts a normal vector to RGB color space. More...

static bool	ComputeNormalWithLS (CCCoreLib::GenericIndexedCloudPersist *pointAndNeighbors, CCVector3 &N)
	Helper: computes the normal (with best LS fit)

static bool	ComputeNormalWithTri (CCCoreLib::GenericIndexedCloudPersist *pointAndNeighbors, CCVector3 &N)
	Helper: computes the normal (with Delaunay 2.5D) More...

static bool	ComputeNormalWithQuadric (CCCoreLib::GenericIndexedCloudPersist *points, const CCVector3 &P, CCVector3 &N)
	Helper: computes the normal (with Delaunay 2.5D) More...

Protected Member Functions
	ccNormalVectors ()
	Default constructor. More...

bool	init ()
	Inits internal structures.

Static Protected Member Functions
static bool	ComputeNormsAtLevelWithQuadric (const CCCoreLib::DgmOctree::octreeCell &cell, void *additionalParameters, CCCoreLib::NormalizedProgress nProgress=nullptr)
	Cellular method for octree-based normal computation.

static bool	ComputeNormsAtLevelWithLS (const CCCoreLib::DgmOctree::octreeCell &cell, void *additionalParameters, CCCoreLib::NormalizedProgress nProgress=nullptr)
	Cellular method for octree-based normal computation.

static bool	ComputeNormsAtLevelWithTri (const CCCoreLib::DgmOctree::octreeCell &cell, void *additionalParameters, CCCoreLib::NormalizedProgress nProgress=nullptr)
	Cellular method for octree-based normal computation.

Protected Attributes
std::vector< CCVector3 >	m_theNormalVectors
	Compressed normal vectors.

std::vector< ccColor::Rgb >	m_theNormalHSVColors
	'HSV' colors corresponding to each compressed normal index More...

Detailed Description

Compressed normal vectors handler.

Member Enumeration Documentation

◆ Orientation

enum ccNormalVectors::Orientation

'Default' orientations

Enumerator
PLUS_X	N.x always positive.
MINUS_X	N.x always negative.
PLUS_Y	N.y always positive.
MINUS_Y	N.y always negative.
PLUS_Z	N.z always positive.
MINUS_Z	N.z always negative.
PLUS_BARYCENTER	Normals always opposite to the cloud barycenter.
MINUS_BARYCENTER	Normals always towards the cloud barycenter.
PLUS_ORIGIN	Normals always opposite to the origin.
MINUS_ORIGIN	Normals always towards the origin.
PREVIOUS	Re-use previous normal (if any)
PLUS_SENSOR_ORIGIN	Normals opposite to the associated sensor origin (if any, and if multiple, the first one will be used)
MINUS_SENSOR_ORIGIN	Normals towards the associated sensor origin (if any, and if multiple, the first one will be used)
UNDEFINED	Undefined (no orientation is required)

Constructor & Destructor Documentation

◆ ccNormalVectors()

ccNormalVectors::ccNormalVectors ( )

protected

Default constructor.

Shouldn't be called directly. Use 'GetUniqueInstance' instead.

Member Function Documentation

◆ ComputeCloudNormals()

bool ccNormalVectors::ComputeCloudNormals	(	ccGenericPointCloud *	cloud,
		NormsIndexesTableType &	theNormsCodes,
		CCCoreLib::LOCAL_MODEL_TYPES	localModel,
		PointCoordinateType	localRadius,
		Orientation	preferredOrientation = `UNDEFINED`,
		CCCoreLib::GenericProgressCallback *	progressCb = `nullptr`,
		CCCoreLib::DgmOctree *	inputOctree = `nullptr`
	)

static

Computes normal at each point of a given cloud.

Parameters

cloud	point cloud on which to process the normals.
theNormsCodes	array in which the normals indexes are stored
localModel	which kind of model to use for the computation (LS = plane, QUADRIC = quadratic Height Function, TRI = triangulation)
localRadius	local neighborhood radius (not necessary for TRI)
preferredOrientation	specifies a preferred orientation for normals (optional)
progressCb	progress notification (optional)
inputOctree	inputOctree input cloud octree (optional).

Returns: success

◆ ComputeNormalWithQuadric()

bool ccNormalVectors::ComputeNormalWithQuadric	(	CCCoreLib::GenericIndexedCloudPersist *	points,
		const CCVector3 &	P,
		CCVector3 &	N
	)

static

Helper: computes the normal (with Delaunay 2.5D)

The normal is computed at the first point (assuming the others are its neighbors).

◆ ComputeNormalWithTri()

bool ccNormalVectors::ComputeNormalWithTri	(	CCCoreLib::GenericIndexedCloudPersist *	pointAndNeighbors,
		CCVector3 &	N
	)

static

Helper: computes the normal (with Delaunay 2.5D)

The normal is computed at the first point (assuming the others are its neighbors).

◆ ConvertDipAndDipDirToNormal()

CCVector3 ccNormalVectors::ConvertDipAndDipDirToNormal	(	PointCoordinateType	dip_deg,
		PointCoordinateType	dipDir_deg,
		bool	upward = `true`
	)

static

Converts a couple of geological 'dip direction & dip' parameters to a unit normal vector.

Parameters

[in]	dip_deg	value (in degrees)
[in]	dipDir_deg	dip direction value(in degrees)
[in]	upward	whether the output normal vector should point towards Z+ (true) or Z- (false)

Returns: unit normal vector

◆ ConvertDipAndDipDirToString()

QString ccNormalVectors::ConvertDipAndDipDirToString	(	PointCoordinateType	dip_deg,
		PointCoordinateType	dipDir_deg
	)

static

Converts geological 'dip direction & dip' parameters to a string.

Parameters

[in]	dip_deg	dip angle value (in degrees)
[in]	dipDir_deg	dip direction value (in degrees)

Returns: formatted string "Dip direction: [dipDir]° - Dip angle: [dip]°"

◆ ConvertNormalToDipAndDipDir()

void ccNormalVectors::ConvertNormalToDipAndDipDir	(	const CCVector3 &	N,
		PointCoordinateType &	dip_deg,
		PointCoordinateType &	dipDir_deg
	)

static

Converts a normal vector to geological 'dip direction & dip' parameters.

See http://en.wikipedia.org/wiki/Strike_and_dip The dip direction is the azimuth of the direction (in [0,360[). The dip is always in [0,90].

Parameters

[in]	N	normal (should be normalized!)
[out]	dip_deg	value (in degrees)
[out]	dipDir_deg	dip direction value (in degrees)

◆ ConvertNormalToHSV()

void ccNormalVectors::ConvertNormalToHSV	(	const CCVector3 &	N,
		float &	H,
		float &	S,
		float &	V
	)

static

Converts a normal vector to HSV color space.

Uses 'strike & dip' parameters (H=strike, S=dip, V=constant)

Parameters

[in]	N	normal (should be normalized!)
[out]	H	hue [0;360[
[out]	S	saturation [0;1]
[out]	V	value [0;1]

◆ ConvertNormalToRGB()

ccColor::Rgb ccNormalVectors::ConvertNormalToRGB ( const CCVector3 & N )

static

Converts a normal vector to RGB color space.

Uses 'ConvertNormalToHSV' then converts HSV to RGB.

Parameters

[in] N normal (should be normalized!)

Returns: RGB value (components between 0 and MAX_COLOR_COMP)

◆ ConvertNormalToStrikeAndDip()

void ccNormalVectors::ConvertNormalToStrikeAndDip	(	const CCVector3 &	N,
		PointCoordinateType &	strike_deg,
		PointCoordinateType &	dip_deg
	)

static

Converts a normal vector to geological 'strike & dip' parameters (N[dip]°E - [strike]°)

Parameters

[in]	N	normal (should be normalized!)
[out]	strike_deg	strike value (in degrees)
[out]	dip_deg	dip value (in degrees)

◆ ConvertStrikeAndDipToString()

QString ccNormalVectors::ConvertStrikeAndDipToString	(	double &	strike_deg,
		double &	dip_deg
	)

static

Converts geological 'strike & dip' parameters (N[dip]°E - [strike]°) to a string.

Parameters

[in]	strike_deg	strike value (in degrees)
[in]	dip_deg	dip value (in degrees)

Returns: formatted string "N[strike]°E - [dip]°"

◆ enableNormalHSVColorsArray()

bool ccNormalVectors::enableNormalHSVColorsArray ( )

Allocates normal HSV colors array.

Mandatory for HSV color related methods (getNormalHSVColor, etc.)

◆ ReleaseUniqueInstance()

void ccNormalVectors::ReleaseUniqueInstance ( )

static

Releases unique instance.

Call to this method is now optional.

◆ UpdateNormalOrientations()

bool ccNormalVectors::UpdateNormalOrientations	(	ccGenericPointCloud *	theCloud,
		NormsIndexesTableType &	theNormsCodes,
		Orientation	preferredOrientation
	)

static

Updates normals orientation based on a preferred orientation.

Parameters

theCloud	point cloud on which to process the normals.
theNormsCodes	array in which the normals indexes are stored
preferredOrientation	specifies a preferred orientation for normals

Returns: success

Member Data Documentation

◆ m_theNormalHSVColors

std::vector<ccColor::Rgb> ccNormalVectors::m_theNormalHSVColors

protected

'HSV' colors corresponding to each compressed normal index

In fact, HSV color has already been converted to RGB here for faster display.

The documentation for this class was generated from the following files:

ccNormalVectors.h
ccNormalVectors.cpp
