ccGenericMesh Class Referenceabstract

Generic mesh interface. More...

#include <ccGenericMesh.h>

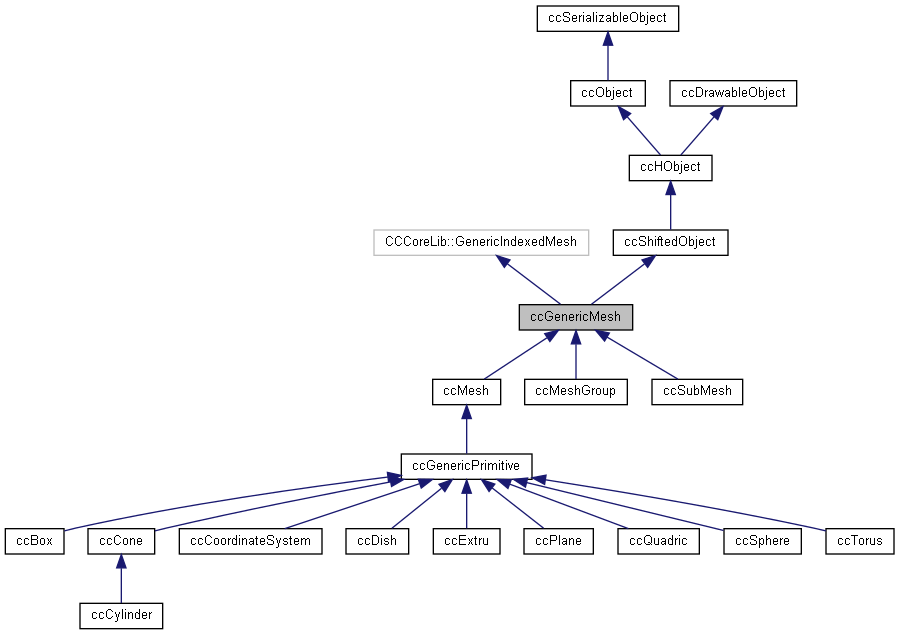

Inheritance diagram for ccGenericMesh:
Inheritance graph
[legend]

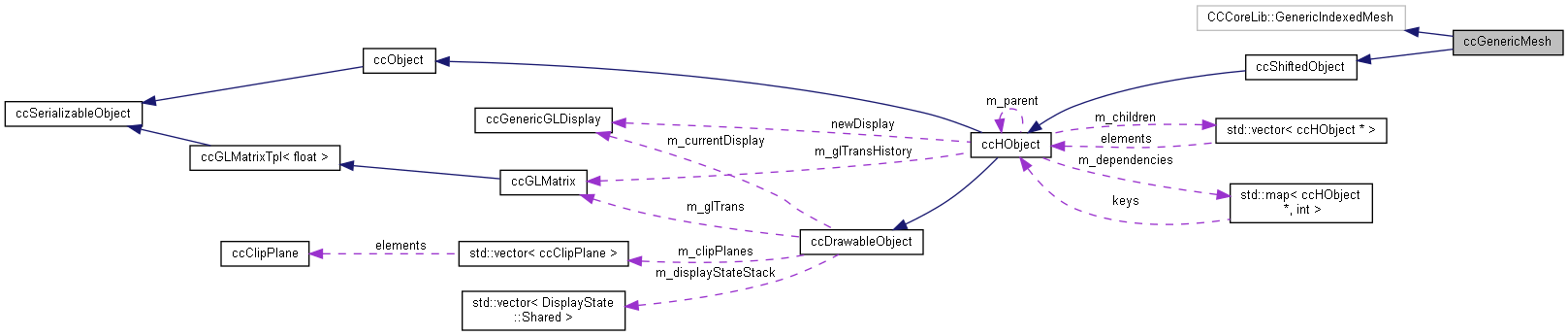

Collaboration diagram for ccGenericMesh:
Collaboration graph
[legend]

Public Member Functions

 ccGenericMesh (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
 Default constructor. More...

 ~ccGenericMesh () override=default
 Destructor.

void showNormals (bool state) override
 Sets normals visibility. More...

bool isSerializable () const override
 Returns whether object is serializable of not. More...

virtual ccGenericPointCloudgetAssociatedCloud () const =0
 Returns the vertices cloud. More...

virtual void refreshBB ()=0
 Forces bounding-box update. More...

virtual unsigned capacity () const =0
 Returns max capacity. More...

virtual bool hasMaterials () const =0
 Returns whether the mesh has materials/textures. More...

virtual const ccMaterialSetgetMaterialSet () const =0
 Returns associated material set. More...

virtual int getTriangleMtlIndex (unsigned triangleIndex) const =0
 Returns a given triangle material indexes. More...

virtual bool hasTextures () const =0
 Returns whether textures are available for this mesh. More...

virtual TextureCoordsContainergetTexCoordinatesTable () const =0
 Returns per-triangle texture coordinates array. More...

virtual void getTriangleTexCoordinates (unsigned triIndex, TexCoords2D *&tx1, TexCoords2D *&tx2, TexCoords2D *&tx3) const =0
 Returns per-triangle texture coordinates (pointer to) More...

virtual bool hasPerTriangleTexCoordIndexes () const =0
 Returns whether this mesh as per-triangle triplets of tex coords indexes. More...

virtual void getTriangleTexCoordinatesIndexes (unsigned triangleIndex, int &i1, int &i2, int &i3) const =0
 Returns the triplet of tex coords indexes for a given triangle. More...

virtual bool hasTriNormals () const =0
 Returns whether the mesh has per-triangle normals. More...

virtual void getTriangleNormalIndexes (unsigned triangleIndex, int &i1, int &i2, int &i3) const =0
 Returns a triplet of normal indexes for a given triangle (if any) More...

virtual bool getTriangleNormals (unsigned triangleIndex, CCVector3 &Na, CCVector3 &Nb, CCVector3 &Nc) const =0
 Returns a given triangle normal. More...

virtual NormsIndexesTableTypegetTriNormsTable () const =0
 Returns per-triangle normals shared array. More...

virtual void computeInterpolationWeights (unsigned triIndex, const CCVector3 &P, CCVector3d &weights) const
 Returns the (barycentric) interpolation weights for a given triangle. More...

virtual bool interpolateNormalsBC (unsigned triIndex, const CCVector3d &w, CCVector3 &N)=0
 Interpolates normal(s) inside a given triangle. More...

virtual bool interpolateColors (unsigned triIndex, const CCVector3 &P, ccColor::Rgb &color)=0
 Interpolates RGB colors inside a given triangle. More...

virtual bool interpolateColorsBC (unsigned triIndex, const CCVector3d &w, ccColor::Rgb &color)=0
 Interpolates RGB colors inside a given triangle. More...

virtual bool interpolateColors (unsigned triIndex, const CCVector3 &P, ccColor::Rgba &color)=0
 Interpolates RGBA colors inside a given triangle. More...

virtual bool interpolateColorsBC (unsigned triIndex, const CCVector3d &w, ccColor::Rgba &color)=0
 Interpolates RGBA colors inside a given triangle. More...

virtual bool getColorFromMaterial (unsigned triIndex, const CCVector3 &P, ccColor::Rgba &color, bool interpolateColorIfNoTexture)=0
 Returns RGB color fom a given triangle material/texture. More...

virtual bool getVertexColorFromMaterial (unsigned triIndex, unsigned char vertIndex, ccColor::Rgba &color, bool returnColorIfNoTexture)=0
 Returns RGB color of a vertex fom a given triangle material/texture. More...

virtual bool isShownAsWire () const
 Returns whether the mesh is displayed as wired or with plain facets.

virtual void showWired (bool state)
 Sets whether mesh should be displayed as a wire or with plain facets.

virtual bool triNormsShown () const
 Returns whether per-triangle normals are shown or not.

virtual void showTriNorms (bool state)
 Sets whether to show or not per-triangle normals.

virtual bool materialsShown () const
 Sets whether textures/material should be displayed or not.

virtual void showMaterials (bool state)
 Sets whether textures should be displayed or not.

virtual bool stipplingEnabled () const
 Returns whether polygon stippling is enabled or not.

void enableStippling (bool state)
 Enables polygon stippling.

ccPointCloudsamplePoints (bool densityBased, double samplingParameter, bool withNormals, bool withRGB, bool withTexture, CCCoreLib::GenericProgressCallback *pDlg=nullptr)
 Samples points on a mesh.

void importParametersFrom (const ccGenericMesh *mesh)
 Imports the parameters from another mesh. More...

virtual bool trianglePicking (const CCVector2d &clickPos, const ccGLCameraParameters &camera, int &nearestTriIndex, double &nearestSquareDist, CCVector3d &nearestPoint, CCVector3d *barycentricCoords=nullptr) const
 Brute force triangle picking. More...

virtual bool trianglePicking (unsigned triIndex, const CCVector2d &clickPos, const ccGLCameraParameters &camera, CCVector3d &point, CCVector3d *barycentricCoords=nullptr) const
 Triangle picking (single triangle)

bool computePointPosition (unsigned triIndex, const CCVector2d &uv, CCVector3 &P, bool warningIfOutside=true) const
 Computes the point that corresponds to the given uv (barycentric) coordinates.

void setGlobalShift (const CCVector3d &shift) override
 Sets shift applied to original coordinates (information storage only) More...

void setGlobalScale (double scale) override
 Sets the scale applied to original coordinates (information storage only) More...

const CCVector3d & getGlobalShift () const override
 Returns the shift applied to original coordinates. More...

double getGlobalScale () const override
 Returns the scale applied to original coordinates. More...

bool normalsAvailable () const override

- Public Member Functions inherited from ccShiftedObject
 ccShiftedObject (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
 Default constructor. More...

 ccShiftedObject (const ccShiftedObject &s)=default
 Copy constructor. More...

void copyGlobalShiftAndScale (const ccShiftedObject &s)
 Copies the Global Shift and Scale from another entity. More...

virtual void setGlobalShift (double x, double y, double z)
 Sets shift applied to original coordinates (information storage only) More...

virtual void setGlobalShift (const CCVector3d &shift)
 Sets shift applied to original coordinates (information storage only) More...

virtual const CCVector3d & getGlobalShift () const
 Returns the shift applied to original coordinates. More...

virtual void setGlobalScale (double scale)
 Sets the scale applied to original coordinates (information storage only) More...

virtual double getGlobalScale () const
 Returns the scale applied to original coordinates. More...

bool isShifted () const
 Returns whether the cloud is shifted or not.

template<typename T >
CCVector3d toGlobal3d (const Vector3Tpl< T > &Plocal) const
 Returns the point back-projected into the original coordinates system.

template<typename T >
CCVector3d toLocal3d (const Vector3Tpl< T > &Pglobal) const
 Returns the point projected into the local (shifted) coordinates system.

template<typename T >
CCVector3 toLocal3pc (const Vector3Tpl< T > &Pglobal) const
 Returns the point projected into the local (shifted) coordinates system.

bool getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner) override
 Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

GlobalBoundingBox getOwnGlobalBB (bool withGLFeatures=false) override
 Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

- Public Member Functions inherited from ccHObject
 ccHObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
 Default constructor. More...

 ccHObject (const ccHObject &object)
 Copy constructor.

 ~ccHObject () override
 Default destructor.

CC_CLASS_ENUM getClassID () const override
 Returns class ID. More...

bool isGroup () const
 Returns whether the instance is a group.

ccHObjectgetParent () const
 Returns parent object. More...

virtual QIcon getIcon () const
 Returns the icon associated to this entity. More...

void addDependency (ccHObject *otherObject, int flags, bool additive=true)
 Adds a new dependence (additive or not) More...

int getDependencyFlagsWith (const ccHObject *otherObject) const
 Returns the dependency flags with a given object. More...

void removeDependencyWith (ccHObject *otherObject)
 Removes any dependency flags with a given object. More...

void removeDependencyFlag (ccHObject *otherObject, DEPENDENCY_FLAGS flag)
 Removes a given dependency flag. More...

virtual bool addChild (ccHObject *child, int dependencyFlags=DP_PARENT_OF_OTHER, int insertIndex=-1)
 Adds a child. More...

unsigned getChildrenNumber () const
 Returns the number of children. More...

unsigned int getChildCountRecursive () const
 Returns the total number of children under this object recursively. More...

ccHObjectgetChild (unsigned childPos) const
 Returns the ith child. More...

ccHObjectfind (unsigned uniqueID) const
 Finds an entity in this object hierarchy. More...

unsigned filterChildren (Container &filteredChildren, bool recursive=false, CC_CLASS_ENUM filter=CC_TYPES::OBJECT, bool strict=false, ccGenericGLDisplay *inDisplay=nullptr) const
 Collects the children corresponding to a certain pattern. More...

void detachChild (ccHObject *child)
 Detaches a specific child. More...

void detachAllChildren ()
 Removes a specific child. More...

void removeChild (ccHObject *child)

void removeChild (int pos)
 Removes a specific child given its index. More...

void removeAllChildren ()
 Removes all children.

int getChildIndex (const ccHObject *aChild) const
 Returns child index.

void swapChildren (unsigned firstChildIndex, unsigned secondChildIndex)
 Swaps two children.

int getIndex () const
 Returns index relatively to its parent or -1 if no parent.

void transferChild (ccHObject *child, ccHObject &newParent)
 Transfer a given child to another parent.

void transferChildren (ccHObject &newParent, bool forceFatherDependent=false)
 Transfer all children to another parent.

ccHObjectgetFirstChild () const
 Shortcut: returns first child.

ccHObjectgetLastChild () const
 Shortcut: returns last child.

bool isAncestorOf (const ccHObject *anObject) const
 Returns true if the current object is an ancestor of the specified one.

virtual ccBBox getOwnBB (bool withGLFeatures=false)
 Returns the entity's own bounding-box (with local/shifted coordinates) More...

virtual ccBBox getBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
 Returns the local bounding-box of this entity and it's children. More...

virtual GlobalBoundingBox getOwnGlobalBB (bool withGLFeatures=false)
 Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual bool getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner)
 Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual GlobalBoundingBox getGlobalBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
 Returns the global bounding-box of this entity and it's children. More...

virtual ccBBox getDisplayBB_recursive (bool relative, const ccGenericGLDisplay *display=nullptr)
 Returns the bounding-box of this entity and it's children WHEN DISPLAYED. More...

virtual ccBBox getOwnFitBB (ccGLMatrix &trans)
 Returns best-fit bounding-box (if available) More...

virtual void drawBB (CC_DRAW_CONTEXT &context, const ccColor::Rgb &col)
 Draws the entity (and its children) bounding-box. More...

void draw (CC_DRAW_CONTEXT &context) override
 Draws entity and its children. More...

bool getAbsoluteGLTransformation (ccGLMatrix &trans) const
 Returns the absolute transformation (i.e. the actual displayed GL transformation) of an entity. More...

virtual bool isDisplayed () const
 Returns whether the object is actually displayed (visible) or not.

virtual bool isDisplayedIn (const ccGenericGLDisplay *display) const
 Returns whether the object is actually displayed (visible) in a given display or not.

virtual bool isBranchEnabled () const
 Returns whether the object and all its ancestors are enabled.

 ccHObject_recursive_call1 (setSelected, bool, setSelected_recursive) ccHObject_recursive_call1(setDisplay

ccGenericGLDisplay setDisplay_recursive ccHObject_recursive_call1 (removeFromDisplay, ccGenericGLDisplay *, removeFromDisplay_recursive) ccHObject_recursive_call0(prepareDisplayForRefresh

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive ccHObject_recursive_call1 (refreshDisplay, bool, refreshDisplay_recursive) ccHObject_recursive_call0(resetGLTransformationHistory

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive ccHObject_recursive_call0 (toggleActivation, toggleActivation_recursive) ccHObject_recursive_call0(toggleVisibility

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive ccHObject_recursive_call0 (toggleColors, toggleColors_recursive) ccHObject_recursive_call0(toggleNormals

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive ccHObject_recursive_call0 (toggleSF, toggleSF_recursive) ccHObject_recursive_call0(toggleShowName

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccHObject_recursive_call0 (toggleMaterials, toggleMaterials_recursive) inline virtual void transferDisplay(ccGenericGLDisplay *oldDisplay
 Transfers the entity from one display to the other.

void applyGLTransformation_recursive (const ccGLMatrix *trans=nullptr)
 Applies the active OpenGL transformation to the entity (recursive) More...

virtual void notifyGeometryUpdate ()
 Notifies all dependent entities that the geometry of this entity has changed.

bool isSerializable () const override
 Returns whether object is serializable of not. More...

bool toFile (QFile &out) const override
 Saves data to binary stream. More...

bool fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
 Loads data from binary stream. More...

bool fromFileNoChildren (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
 Custom version of ccSerializableObject::fromFile. More...

virtual bool isShareable () const
 Returns whether object is shareable or not. More...

virtual void setSelectionBehavior (SelectionBehavior mode)
 Sets selection behavior (when displayed) More...

virtual SelectionBehavior getSelectionBehavior () const
 Returns selection behavior.

virtual unsigned getUniqueIDForDisplay () const
 Returns object unique ID used for display. More...

virtual const ccGLMatrixgetGLTransformationHistory () const
 Returns the transformation 'history' matrix. More...

virtual void setGLTransformationHistory (const ccGLMatrix &mat)
 Sets the transformation 'history' matrix (handle with care!)

virtual void resetGLTransformationHistory ()
 Resets the transformation 'history' matrix.

bool pushDisplayState () override
 Pushes the current display state (overridden) More...

void popDisplayState (bool apply=true) override
 Pops the last pushed display state (overridden) More...

- Public Member Functions inherited from ccObject
 ccObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
 Default constructor. More...

 ccObject (const ccObject &object)
 Copy constructor.

virtual CC_CLASS_ENUM getClassID () const =0
 Returns class ID. More...

virtual QString getName () const
 Returns object name. More...

virtual void setName (const QString &name)
 Sets object name.

virtual unsigned getUniqueID () const
 Returns object unique ID.

virtual void setUniqueID (unsigned ID)
 Changes unique ID. More...

virtual bool isEnabled () const
 Returns whether the object is enabled or not. More...

virtual void setEnabled (bool state)
 Sets the "enabled" property. More...

virtual void toggleActivation ()
 Toggles the "enabled" property.

virtual bool isLocked () const
 Returns whether the object is locked or not. More...

virtual void setLocked (bool state)
 Sets the "enabled" property. More...

bool isLeaf () const

bool isCustom () const

bool isHierarchy () const

bool isKindOf (CC_CLASS_ENUM type) const

bool isA (CC_CLASS_ENUM type) const

QVariant getMetaData (const QString &key) const
 Returns a given associated meta data. More...

bool removeMetaData (const QString &key)
 Removes a given associated meta-data. More...

void setMetaData (const QString &key, const QVariant &data)
 Sets a meta-data element. More...

void setMetaData (const QVariantMap &dataset, bool overwrite=false)
 Sets several meta-data elements at a time. More...

bool hasMetaData (const QString &key) const
 Returns whether a meta-data element with the given key exists or not. More...

const QVariantMap & metaData () const
 Returns meta-data map (const only)

- Public Member Functions inherited from ccSerializableObject
virtual ~ccSerializableObject ()=default
 Destructor.

virtual bool isSerializable () const
 Returns whether object is serializable of not. More...

virtual bool toFile (QFile &out) const
 Saves data to binary stream. More...

virtual bool fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
 Loads data from binary stream. More...

- Public Member Functions inherited from ccDrawableObject
 ccDrawableObject ()
 Default constructor.

 ccDrawableObject (const ccDrawableObject &object)
 Copy constructor.

virtual void draw (CC_DRAW_CONTEXT &context)=0
 Draws entity and its children. More...

virtual bool isVisible () const
 Returns whether entity is visible or not.

virtual void setVisible (bool state)
 Sets entity visibility.

virtual void toggleVisibility ()
 Toggles visibility.

virtual bool isVisibilityLocked () const
 Returns whether visibility is locked or not.

virtual void lockVisibility (bool state)
 Locks/unlocks visibility. More...

virtual bool isSelected () const
 Returns whether entity is selected or not.

virtual void setSelected (bool state)
 Selects/unselects entity.

virtual void getDrawingParameters (glDrawParams &params) const
 Returns main OpenGL parameters for this entity. More...

virtual bool hasColors () const
 Returns whether colors are enabled or not. More...

virtual bool colorsShown () const
 Returns whether colors are shown or not.

virtual void showColors (bool state)
 Sets colors visibility.

virtual void toggleColors ()
 Toggles colors display state.

virtual bool hasNormals () const
 Returns whether normals are enabled or not. More...

virtual bool normalsShown () const
 Returns whether normals are shown or not. More...

virtual void showNormals (bool state)
 Sets normals visibility. More...

virtual void toggleNormals ()
 Toggles normals display state.

virtual bool hasDisplayedScalarField () const
 Returns whether an active scalar field is available or not. More...

virtual bool hasScalarFields () const
 Returns whether one or more scalar fields are instantiated. More...

virtual void showSF (bool state)
 Sets active scalarfield visibility.

virtual void toggleSF ()
 Toggles SF display state.

virtual bool sfShown () const
 Returns whether active scalar field is visible.

virtual void toggleMaterials ()
 Toggles material display state. More...

virtual void showNameIn3D (bool state)
 Sets whether name should be displayed in 3D or not.

virtual bool nameShownIn3D () const
 Returns whether name is displayed in 3D or not.

virtual void toggleShowName ()
 Toggles name in 3D display state.

virtual bool isColorOverridden () const
 Returns whether colors are currently overridden by a temporary (unique) color. More...

virtual const ccColor::RgbagetTempColor () const
 Returns current temporary (unique) color.

virtual void setTempColor (const ccColor::Rgba &col, bool autoActivate=true)
 Sets current temporary (unique) More...

virtual void setTempColor (const ccColor::Rgb &col, bool autoActivate=true)
 Sets current temporary (unique) More...

virtual void enableTempColor (bool state)
 Set temporary color activation state.

virtual void removeFromDisplay (const ccGenericGLDisplay *win)
 Unlinks entity from a GL display (only if it belongs to it of course)

virtual void setDisplay (ccGenericGLDisplay *win)
 Sets associated GL display.

virtual ccGenericGLDisplaygetDisplay () const
 Returns associated GL display.

virtual void redrawDisplay ()
 Redraws associated GL display.

virtual void prepareDisplayForRefresh ()
 Sets associated GL display 'refreshable' before global refresh. More...

virtual void refreshDisplay (bool only2D=false)
 Refreshes associated GL display. More...

virtual void setGLTransformation (const ccGLMatrix &trans)
 Associates entity with a GL transformation (rotation + translation) More...

virtual void enableGLTransformation (bool state)
 Enables/disables associated GL transformation. More...

virtual bool isGLTransEnabled () const
 Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrixgetGLTransformation () const
 Returns associated GL transformation. More...

virtual void resetGLTransformation ()
 Resets associated GL transformation. More...

virtual void rotateGL (const ccGLMatrix &rotMat)
 Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void translateGL (const CCVector3 &trans)
 Translates current GL transformation by a rotation matrix. More...

virtual void removeAllClipPlanes ()
 Removes all clipping planes (if any)

virtual bool addClipPlanes (const ccClipPlane &plane)
 Registers a new clipping plane. More...

virtual void toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
 Enables or disables clipping planes (OpenGL) More...

virtual bool pushDisplayState ()
 Pushes the current display state. More...

virtual void popDisplayState (bool apply=true)
 Pops the last pushed display state. More...

virtual void applyDisplayState (const DisplayState &state)
 Applies a display state.


Static Public Member Functions

static bool IsCloudVerticesOfMesh (ccGenericPointCloud *cloud, ccGenericMesh **mesh=nullptr)
 Helper to determine if the input cloud acts as vertices of a mesh.

- Static Public Member Functions inherited from ccHObject
static ccHObjectNew (CC_CLASS_ENUM objectType, const char *name=nullptr)
 Static factory. More...

static ccHObjectNew (const QString &pluginId, const QString &classId, const char *name=nullptr)
 Static factory (version to be used by external plugin factories) More...

- Static Public Member Functions inherited from ccObject
static unsigned GetCurrentDBVersion ()
 Returns current database version.

static void SetUniqueIDGenerator (ccUniqueIDGenerator::Shared generator)
 Sets the unique ID generator.

static ccUniqueIDGenerator::Shared GetUniqueIDGenerator ()
 Returns the unique ID generator.

static unsigned GetNextUniqueID ()
 Returns a new unassigned unique ID. More...

static unsigned GetLastUniqueID ()
 Returns last assigned unique ID. More...

static CC_CLASS_ENUM ReadClassIDFromFile (QFile &in, short dataVersion)
 Helper: reads out class ID from a binary stream. More...

- Static Public Member Functions inherited from ccSerializableObject
static bool WriteError ()
 Sends a custom error message (write error) and returns 'false'. More...

static bool ReadError ()
 Sends a custom error message (read error) and returns 'false'. More...

static bool MemoryError ()
 Sends a custom error message (not enough memory) and returns 'false'. More...

static bool CorruptError ()
 Sends a custom error message (corrupted file) and returns 'false'. More...


Protected Member Functions

bool toFile_MeOnly (QFile &out) const override
 Save own object data. More...

bool fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
 Loads own object data. More...

virtual bool trianglePicking (unsigned triIndex, const CCVector2d &clickPos, const ccGLMatrix &trans, bool noGLTrans, const ccGenericPointCloud &vertices, const ccGLCameraParameters &camera, CCVector3d &point, CCVector3d *barycentricCoords=nullptr, QPainter *painter=nullptr) const
 Triangle picking (single triangle)

void drawMeOnly (CC_DRAW_CONTEXT &context) override
 Draws the entity only (not its children) More...

void handleColorRamp (CC_DRAW_CONTEXT &context)
 Handles the color ramp display.

- Protected Member Functions inherited from ccShiftedObject
bool saveShiftInfoToFile (QFile &out) const
 Serialization helper (output)

bool loadShiftInfoFromFile (QFile &in)
 Serialization helper (input)

- Protected Member Functions inherited from ccHObject
virtual void setParent (ccHObject *anObject)
 Sets parent object.

virtual void drawMeOnly (CC_DRAW_CONTEXT &context)
 Draws the entity only (not its children) More...

virtual void applyGLTransformation (const ccGLMatrix &trans)
 Applies a GL transformation to the entity. More...

virtual bool toFile_MeOnly (QFile &out) const
 Save own object data. More...

virtual bool fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
 Loads own object data. More...

virtual void drawNameIn3D (CC_DRAW_CONTEXT &context)
 Draws the entity name in 3D. More...

virtual void onDeletionOf (const ccHObject *obj)
 This method is called when another object is deleted. More...

virtual void onUpdateOf (ccHObject *obj)
 This method is called when another object (geometry) is updated. More...

- Protected Member Functions inherited from ccObject
virtual bool getFlagState (CC_OBJECT_FLAG flag) const
 Returns flag state.

virtual void setFlagState (CC_OBJECT_FLAG flag, bool state)
 Sets flag state. More...

bool toFile (QFile &out) const override
 Saves data to binary stream. More...

bool fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
 Reimplemented from ccSerializableObject::fromFile. More...


Static Protected Member Functions

static CCVector3 * GetVertexBuffer ()

static CCVector3 * GetNormalsBuffer ()

static ColorCompType * GetColorsBuffer ()

static unsigned * GetWireVertexIndexes ()
 Returns a pre-initialized array of vertex indexes for wired display. More...

static void EnableGLStippleMask (const QOpenGLContext *context, bool state)
 Enables (OpenGL) stipple mask.


Protected Attributes

bool m_triNormsShown
 Per-triangle normals display flag.

bool m_materialsShown
 Texture/material display flag.

bool m_showWired
 Wireframe display mode.

bool m_stippling
 Polygon stippling state.

- Protected Attributes inherited from ccShiftedObject
CCVector3d m_globalShift
 Global shift (typically applied at loading time)

double m_globalScale
 Global scale (typically applied at loading time)

- Protected Attributes inherited from ccHObject
ccHObjectm_parent
 Parent.

Container m_children
 Children.

SelectionBehavior m_selectionBehavior
 Selection behavior.

std::map< ccHObject *, int > m_dependencies
 Dependencies map. More...

ccGLMatrix m_glTransHistory
 Cumulative GL transformation. More...

bool m_isDeleting
 Flag to safely handle dependencies when the object is being deleted.

- Protected Attributes inherited from ccObject
QString m_name
 Object name.

unsigned m_flags
 Object flags.

QVariantMap m_metaData
 Associated meta-data.

- Protected Attributes inherited from ccDrawableObject
bool m_visible
 Specifies whether the object is visible or not. More...

bool m_selected
 Specifies whether the object is selected or not.

bool m_lockedVisibility
 Specifies whether the visibility can be changed by user or not.

bool m_colorsDisplayed
 Specifies whether colors should be displayed.

bool m_normalsDisplayed
 Specifies whether normals should be displayed.

bool m_sfDisplayed
 Specifies whether scalar field should be displayed.

ccColor::Rgba m_tempColor
 Temporary (unique) color.

bool m_colorIsOverridden
 Temporary (unique) color activation state.

ccGLMatrix m_glTrans
 Current GL transformation. More...

bool m_glTransEnabled
 Current GL transformation activation state. More...

bool m_showNameIn3D
 Whether name is displayed in 3D or not.

CCVector3d m_nameIn3DPos
 Last 2D position of the '3D' name.

bool m_nameIn3DPosIsValid
 Whether the last 2D position of the '3D' name is valid or not.

ccGenericGLDisplaym_currentDisplay
 Currently associated GL display.

ccClipPlaneSet m_clipPlanes
 Active clipping planes (used for display only)

std::vector< DisplayState::Shared > m_displayStateStack
 The stack of pushed display states.


Additional Inherited Members

- Public Types inherited from ccHObject
enum  DEPENDENCY_FLAGS {
  DP_NONE = 0 , DP_NOTIFY_OTHER_ON_DELETE = 1 , DP_NOTIFY_OTHER_ON_UPDATE = 2 , DP_DELETE_OTHER = 8 ,
  DP_PARENT_OF_OTHER = 24
}
 Dependency flags. More...

enum  SelectionBehavior { SELECTION_AA_BBOX , SELECTION_FIT_BBOX , SELECTION_IGNORED }
 Behavior when selected.

using Container = std::vector< ccHObject * >
 Standard instances container (for children, etc.)

using Shared = QSharedPointer< ccHObject >
 Shared pointer.

using SharedContainer = std::vector< Shared >
 Shared instances container (for children, etc.)

using GlobalBoundingBox = CCCoreLib::BoundingBoxTpl< double >
 Global (non-shifted) bounding-box.

- Public Types inherited from ccSerializableObject
enum  DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
 Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned > LoadedIDMap
 Map of loaded unique IDs (old ID --> new ID)

- Public Attributes inherited from ccHObject
ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccGenericGLDisplaynewDisplay


Detailed Description

Generic mesh interface.

Constructor & Destructor Documentation

◆ ccGenericMesh()

ccGenericMesh::ccGenericMesh ( QString  name = QString(),
unsigned  uniqueID = ccUniqueIDGenerator::InvalidUniqueID
)

Default constructor.

Parameters
nameobject name
uniqueIDunique ID (handle with care)

Member Function Documentation

◆ capacity()

virtual unsigned ccGenericMesh::capacity ( ) const
pure virtual

Returns max capacity.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ computeInterpolationWeights()

void ccGenericMesh::computeInterpolationWeights ( unsigned  triIndex,
const CCVector3 &  P,
CCVector3d &  weights
) const
virtual

Returns the (barycentric) interpolation weights for a given triangle.

Reimplemented in ccMesh.

◆ drawMeOnly()

void ccGenericMesh::drawMeOnly ( CC_DRAW_CONTEXT context)
overrideprotectedvirtual

Draws the entity only (not its children)

Reimplemented from ccHObject.

Reimplemented in ccMesh, ccMeshGroup, and ccPlane.

◆ fromFile_MeOnly()

bool ccGenericMesh::fromFile_MeOnly ( QFile &  in,
short  dataVersion,
int  flags,
LoadedIDMap oldToNewIDMap
)
overrideprotectedvirtual

Loads own object data.

Called by 'fromFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Parameters
ininput file
dataVersionfile version
flagsdeserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMapmap to link old IDs with new IDs

Reimplemented from ccHObject.

Reimplemented in ccGenericPrimitive, ccMesh, ccMeshGroup, ccPlane, ccQuadric, ccSphere, ccSubMesh, and ccTorus.

◆ getAssociatedCloud()

virtual ccGenericPointCloud * ccGenericMesh::getAssociatedCloud ( ) const
pure virtual

Returns the vertices cloud.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getColorFromMaterial()

virtual bool ccGenericMesh::getColorFromMaterial ( unsigned  triIndex,
const CCVector3 &  P,
ccColor::Rgba color,
bool  interpolateColorIfNoTexture
)
pure virtual

Returns RGB color fom a given triangle material/texture.

Parameters
triIndextriangle index
Ppoint where to grab color (should be inside the triangle!)
[out]colortexel color
interpolateColorIfNoTexturewhether to return the color interpolated from the RGB field if no texture/material is associated to the given triangles
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getGlobalScale()

double ccGenericMesh::getGlobalScale ( ) const
overridevirtual

Returns the scale applied to original coordinates.

Reimplemented from ccShiftedObject.

◆ getGlobalShift()

const CCVector3d & ccGenericMesh::getGlobalShift ( ) const
overridevirtual

Returns the shift applied to original coordinates.

See ccGenericPointCloud::setOriginalShift

Reimplemented from ccShiftedObject.

◆ getMaterialSet()

virtual const ccMaterialSet * ccGenericMesh::getMaterialSet ( ) const
pure virtual

Returns associated material set.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTexCoordinatesTable()

virtual TextureCoordsContainer * ccGenericMesh::getTexCoordinatesTable ( ) const
pure virtual

Returns per-triangle texture coordinates array.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleMtlIndex()

virtual int ccGenericMesh::getTriangleMtlIndex ( unsigned  triangleIndex) const
pure virtual

Returns a given triangle material indexes.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleNormalIndexes()

virtual void ccGenericMesh::getTriangleNormalIndexes ( unsigned  triangleIndex,
int &  i1,
int &  i2,
int &  i3
) const
pure virtual

Returns a triplet of normal indexes for a given triangle (if any)

Parameters
[in]triangleIndextriangle index
[out]i1first vertex normal index (or -1 if none)
[out]i2second vertex normal index (or -1 if none)
[out]i3third vertex normal index (or -1 if none)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleNormals()

virtual bool ccGenericMesh::getTriangleNormals ( unsigned  triangleIndex,
CCVector3 &  Na,
CCVector3 &  Nb,
CCVector3 &  Nc
) const
pure virtual

Returns a given triangle normal.

Mesh must have triangle normals associated (see hasTriNormals)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleTexCoordinates()

virtual void ccGenericMesh::getTriangleTexCoordinates ( unsigned  triIndex,
TexCoords2D *&  tx1,
TexCoords2D *&  tx2,
TexCoords2D *&  tx3
) const
pure virtual

Returns per-triangle texture coordinates (pointer to)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleTexCoordinatesIndexes()

virtual void ccGenericMesh::getTriangleTexCoordinatesIndexes ( unsigned  triangleIndex,
int &  i1,
int &  i2,
int &  i3
) const
pure virtual

Returns the triplet of tex coords indexes for a given triangle.

Parameters
triangleIndextriangle index
i1first vertex tex coords index
i2second vertex tex coords index
i3third vertex tex coords index

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriNormsTable()

virtual NormsIndexesTableType * ccGenericMesh::getTriNormsTable ( ) const
pure virtual

Returns per-triangle normals shared array.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getVertexColorFromMaterial()

virtual bool ccGenericMesh::getVertexColorFromMaterial ( unsigned  triIndex,
unsigned char  vertIndex,
ccColor::Rgba color,
bool  returnColorIfNoTexture
)
pure virtual

Returns RGB color of a vertex fom a given triangle material/texture.

Parameters
triIndextriangle index
vertIndexvertex index inside triangle (i.e. 0, 1 or 2!)
[out]colortexel color
returnColorIfNoTexturewhether to return the color from the vertex RGB field if no texture/material is associated to the given triangle
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ GetWireVertexIndexes()

unsigned * ccGenericMesh::GetWireVertexIndexes ( )
staticprotected

Returns a pre-initialized array of vertex indexes for wired display.

Array size is MAX_NUMBER_OF_ELEMENTS_PER_CHUNK*6 by default

◆ hasMaterials()

virtual bool ccGenericMesh::hasMaterials ( ) const
pure virtual

Returns whether the mesh has materials/textures.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasPerTriangleTexCoordIndexes()

virtual bool ccGenericMesh::hasPerTriangleTexCoordIndexes ( ) const
pure virtual

Returns whether this mesh as per-triangle triplets of tex coords indexes.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasTextures()

virtual bool ccGenericMesh::hasTextures ( ) const
pure virtual

Returns whether textures are available for this mesh.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasTriNormals()

virtual bool ccGenericMesh::hasTriNormals ( ) const
pure virtual

Returns whether the mesh has per-triangle normals.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ importParametersFrom()

void ccGenericMesh::importParametersFrom ( const ccGenericMesh mesh)

Imports the parameters from another mesh.

Only the specific parameters are imported.

◆ interpolateColors() [1/2]

virtual bool ccGenericMesh::interpolateColors ( unsigned  triIndex,
const CCVector3 &  P,
ccColor::Rgb color
)
pure virtual

Interpolates RGB colors inside a given triangle.

Parameters
triIndextriangle index
Ppoint where to interpolate (should be inside the triangle!)
[out]colorinterpolated color
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColors() [2/2]

virtual bool ccGenericMesh::interpolateColors ( unsigned  triIndex,
const CCVector3 &  P,
ccColor::Rgba color
)
pure virtual

Interpolates RGBA colors inside a given triangle.

Parameters
triIndextriangle index
Ppoint where to interpolate (should be inside the triangle!)
[out]colorinterpolated color
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColorsBC() [1/2]

virtual bool ccGenericMesh::interpolateColorsBC ( unsigned  triIndex,
const CCVector3d &  w,
ccColor::Rgb color
)
pure virtual

Interpolates RGB colors inside a given triangle.

Parameters
triIndextriangle index
wbarycentric coordinates
[out]colorinterpolated color
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColorsBC() [2/2]

virtual bool ccGenericMesh::interpolateColorsBC ( unsigned  triIndex,
const CCVector3d &  w,
ccColor::Rgba color
)
pure virtual

Interpolates RGBA colors inside a given triangle.

Parameters
triIndextriangle index
wbarycentric coordinates
[out]colorinterpolated color
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateNormalsBC()

virtual bool ccGenericMesh::interpolateNormalsBC ( unsigned  triIndex,
const CCVector3d &  w,
CCVector3 &  N
)
pure virtual

Interpolates normal(s) inside a given triangle.

Parameters
triIndextriangle index
wbarycentric coordinates
[out]Ninterpolated normal
Returns
success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ isSerializable()

bool ccGenericMesh::isSerializable ( ) const
inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Reimplemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ refreshBB()

virtual void ccGenericMesh::refreshBB ( )
pure virtual

Forces bounding-box update.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ setGlobalScale()

void ccGenericMesh::setGlobalScale ( double  scale)
overridevirtual

Sets the scale applied to original coordinates (information storage only)

Reimplemented from ccShiftedObject.

Reimplemented in ccMeshGroup, and ccSubMesh.

◆ setGlobalShift()

void ccGenericMesh::setGlobalShift ( const CCVector3d &  shift)
overridevirtual

Sets shift applied to original coordinates (information storage only)

Such a shift can typically be applied at loading time. Original coordinates are equal to '(P/scale - shift)'

Reimplemented from ccShiftedObject.

Reimplemented in ccMeshGroup, and ccSubMesh.

◆ showNormals()

void ccGenericMesh::showNormals ( bool  state)
overridevirtual

Sets normals visibility.

Reimplemented from ccDrawableObject.

◆ toFile_MeOnly()

bool ccGenericMesh::toFile_MeOnly ( QFile &  out) const
overrideprotectedvirtual

Save own object data.

Called by 'toFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Reimplemented from ccHObject.

Reimplemented in ccGenericPrimitive, ccMesh, ccMeshGroup, ccPlane, ccQuadric, ccSphere, ccSubMesh, and ccTorus.

◆ trianglePicking()

bool ccGenericMesh::trianglePicking ( const CCVector2d &  clickPos,
const ccGLCameraParameters camera,
int &  nearestTriIndex,
double &  nearestSquareDist,
CCVector3d &  nearestPoint,
CCVector3d *  barycentricCoords = nullptr
) const
virtual

Brute force triangle picking.

Reimplemented in ccMeshGroup.


The documentation for this class was generated from the following files:
